Nissan Figaro rear fog lamp switch

Nissan Figaro rear fog lamp switch.

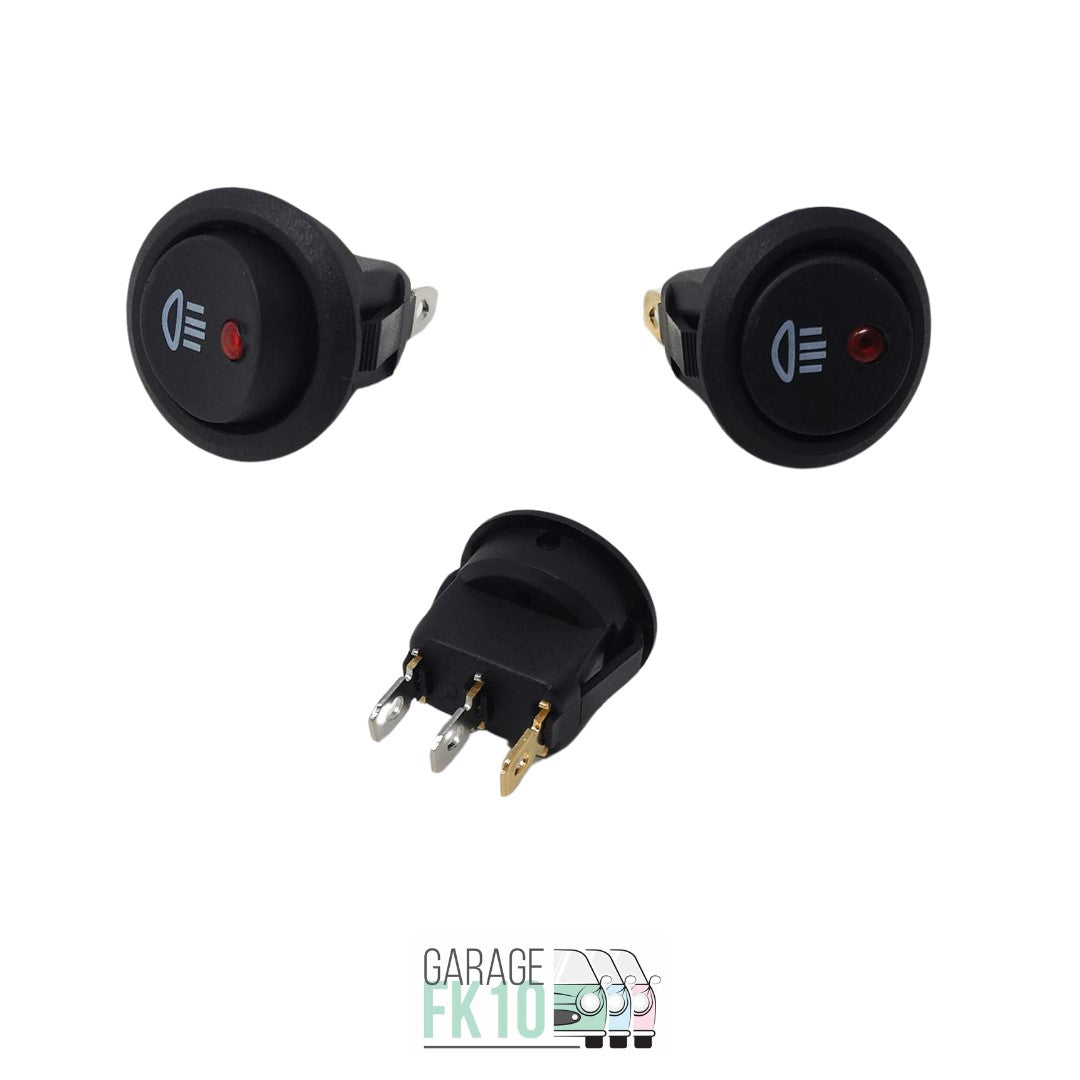

ON/OFF round rocker switch and a red light. This switch has a fog light symbol printed on the switch face and the light illuminates when the switch is ON.

Press fits into a 23mm panel hole and retained via sprung 'arms'.

Wiring instructions:

• +12V out (load) - terminal 1
• +12V in (supply) - terminal 2
• -ve/ground - terminal 3
